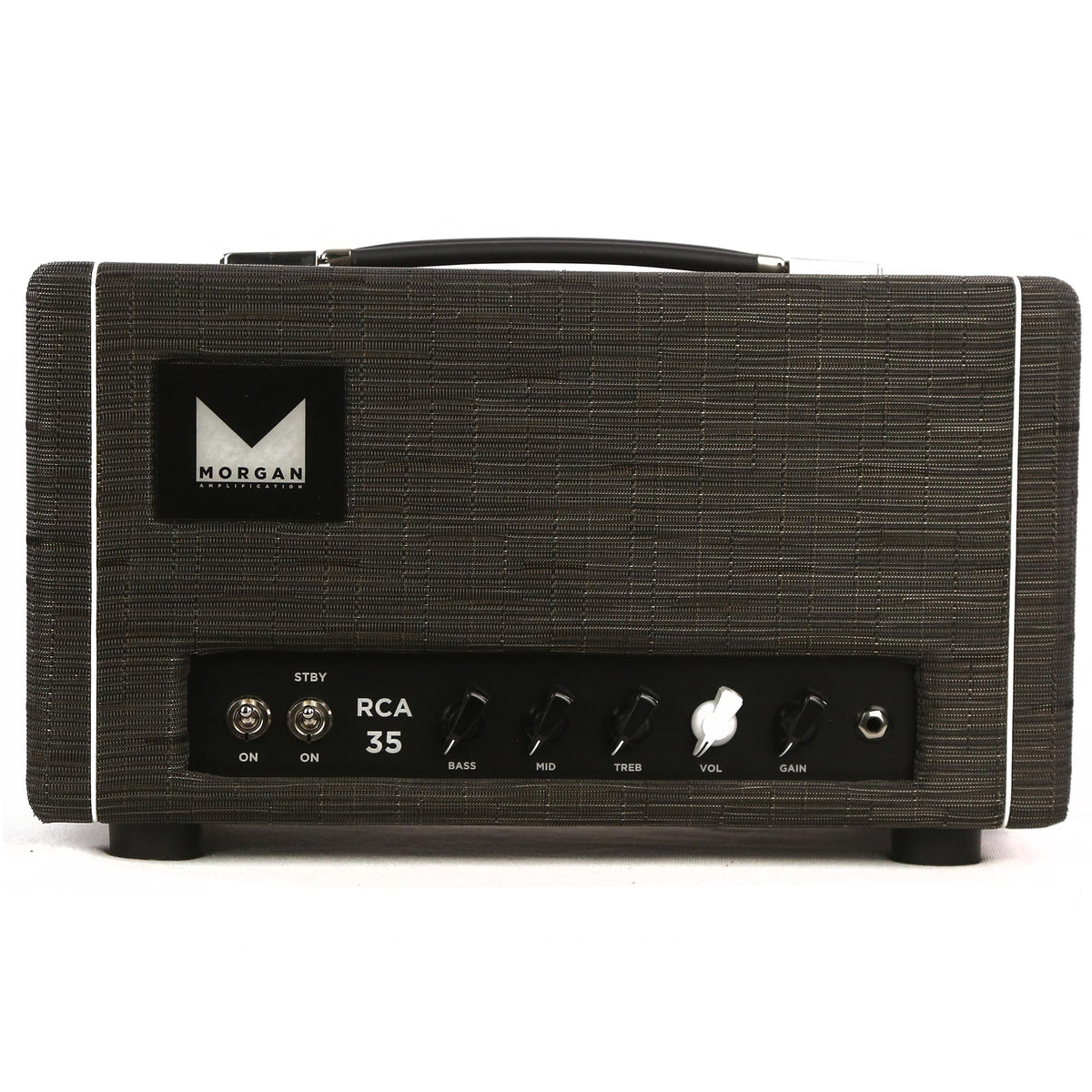

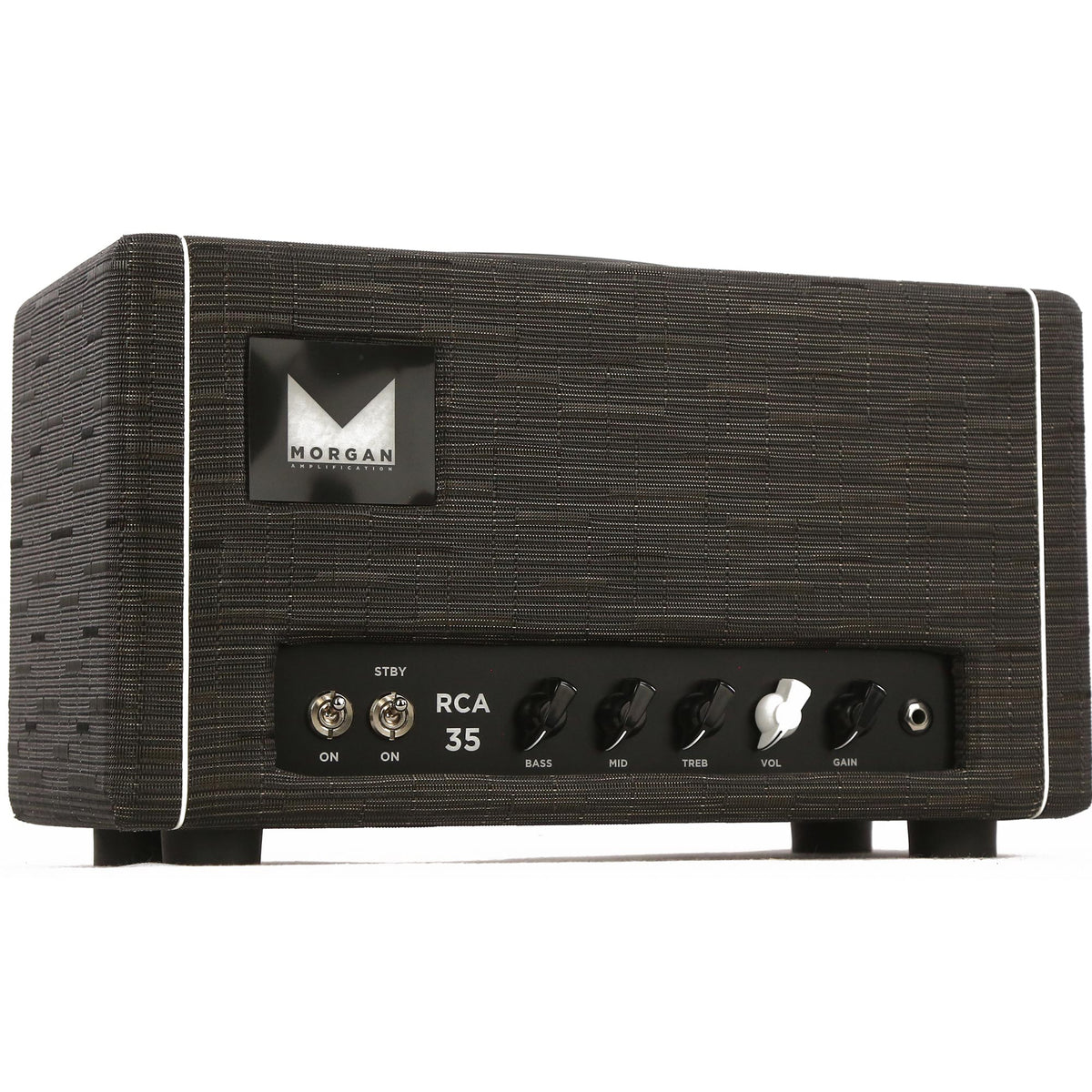

Morgan RCA35 Guitar Amplifier Head

Morgan · #230215A
BrandMorgan
TypeAmplifiers
Serial No.230215A
PhotographyActual Photos
Archive ID53675
Shop all Morgan →

Have a question about this item?

Our knowledgeable team can help with this guitar's history, condition, and playability — plus trades, consignment, financing, and shipping. Want one like it? Let us know and we'll notify you.

Call to speak with an expert: (516) 626-9292

The Story

RCA35 Guitar Amplifier Head

This is a very lightly used Morgan RCA35 head. The RCA35 is a 35 watt head which utilizes a special transformer than can work with 6L6s, 6V6s, EL34s, KT66s, KT77s, and 6CA7s! Whatever your matched set of power tubes is, the heads cathode bias design allows you to swap out without rebiasing. The Midrange control on this amp is special. It is designed to behave normally until about the 9 o’clock position on dial, from that point on you will be adding gain along with your midrange giving you a completely different feel and growl. The Master volume on this amp is similar to the ones used in The SW series of Morgan Amps. Once the master volume is over the 2 o’clock position it will start adding gain to the power section of the amp.

Includes: Power Cable and Manual

Sell Us Your Guitar

Have something similar? The Music Zoo buys, trades, and consigns.
Sell Your Guitar →

The Specifications

As it left The Music Zoo Tech Bench.
  • 35w Class A
  • 2 x 6L6 Power Tubes
  • 2 x 12AX7 Pre-Amp Tubes
  • Gain, Treble, Mid, Bass, Volume Controls
  • Bright Switch

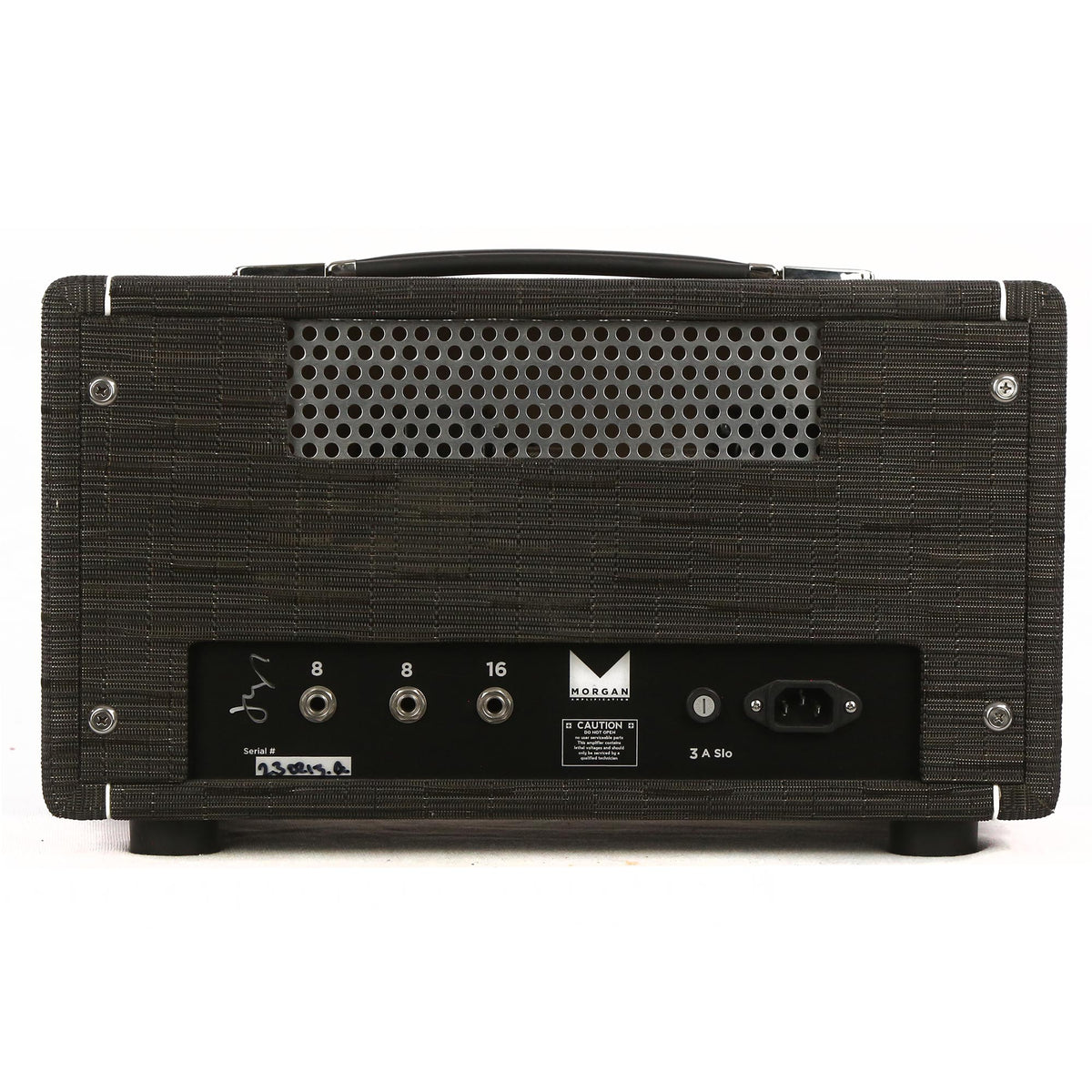

  • 2 x 8ohm, 1 x 16ohm Outputs
  • Custom USA Made Transformers
