Wire Instruments Concorde Tri-Burst

Concorde IV · #412
BrandWire Instruments
TypeElectric Guitars
Serial No.412
PhotographyActual Photos
Archive ID36935
Shop all Wire Instruments →

Have a question about this item?

Our knowledgeable team can help with this guitar's history, condition, and playability — plus trades, consignment, financing, and shipping. Want one like it? Let us know and we'll notify you.

Call to speak with an expert: (516) 626-9292

The Story

Concorde Tri-Burst

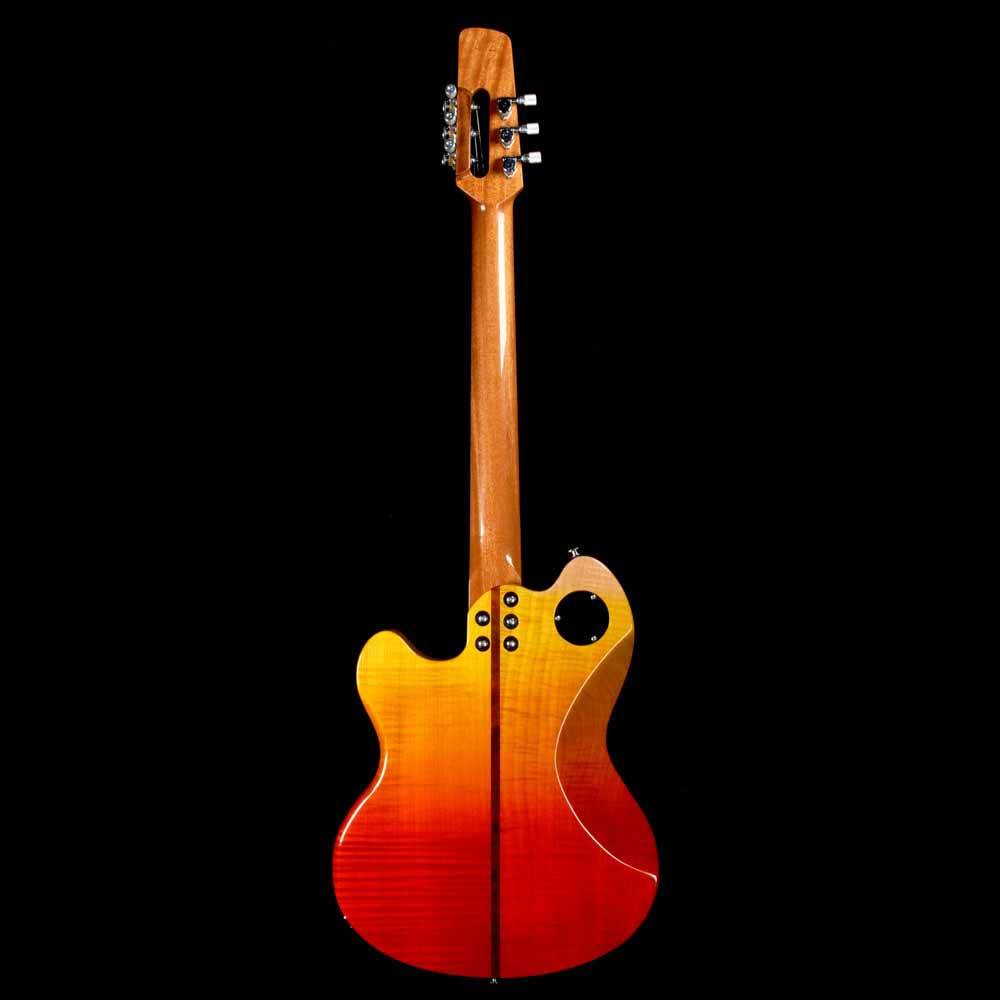

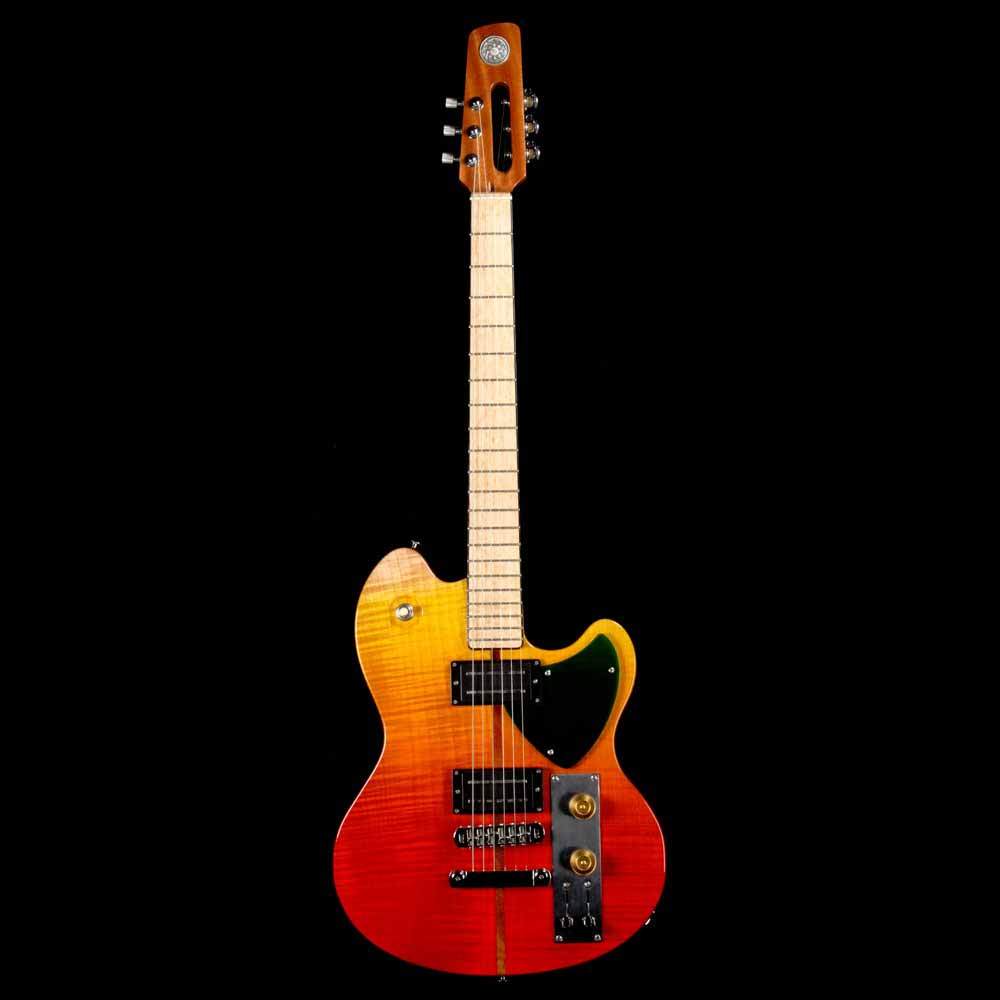

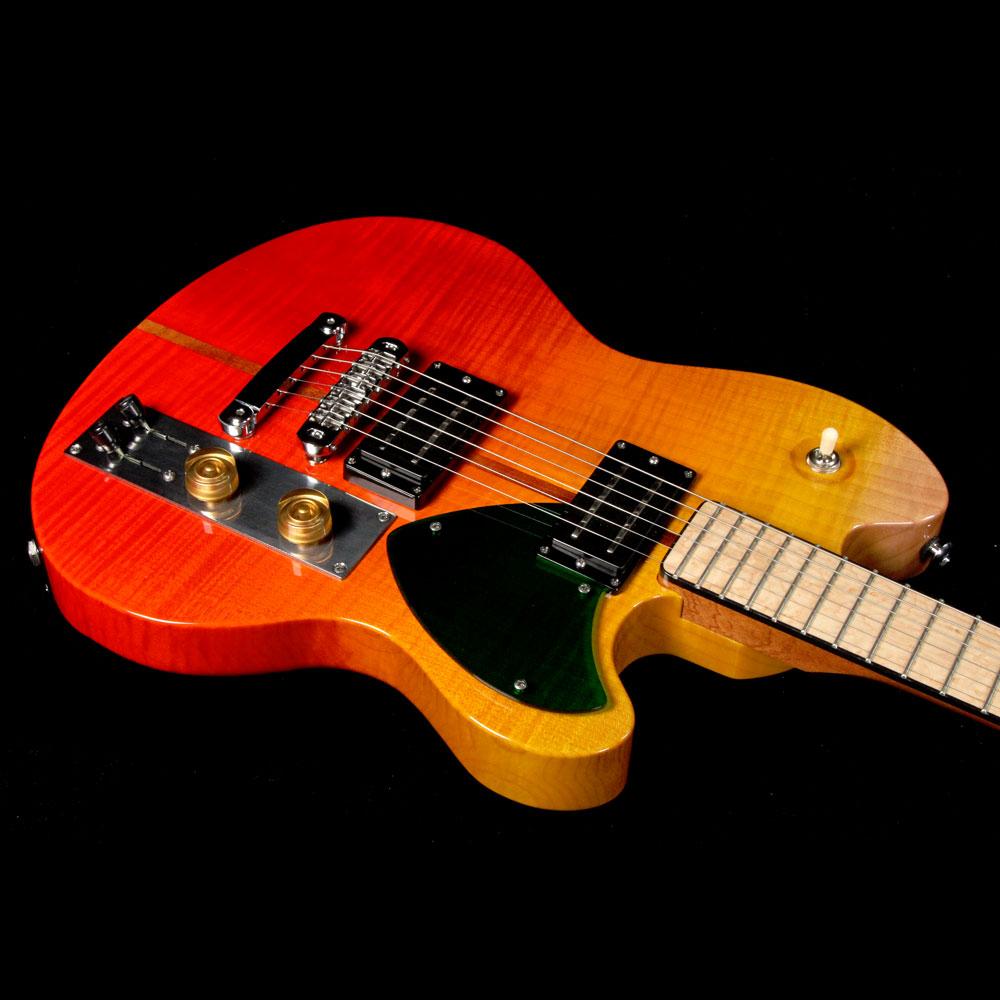

The Music Zoo is very proud to be an authorized dealer of Wire Instruments, built by luthier and tech Earnie Bailey in the Pacific Northwest. We met Earnie at NAMM 2018, and became super interested in his guitars, which take inspiration from some rare and unique English electric guitars of the 1960s and '70s. Earnie has done work for everyone from Black Flag and James Hetfield to Pavement and Eddie Vedder. He's also most known for being the tech for Nirvana, as well as the Foo Fighters. This guitar is a Concorde IV in Tri-Burst, over a flame maple body with a walnut stringer down the middle, a sapele neck and birdseye maple fretboard. The guitar has two Pete Biltoft pickups with Wire's own unique wiring via two lever switches, giving you just about any tone you'd want out of the guitar, including some you weren't expecting, with the high and low-pass filters for on-board 'cocked-wah'-esque sounds! The pickup outside coils are overwound, and the inside coils are underwound for coil tapping pickup configurations via the upper switch on the metal plate. The guitar has a full 25" scale, and comfortable 1-11/16" nut width.

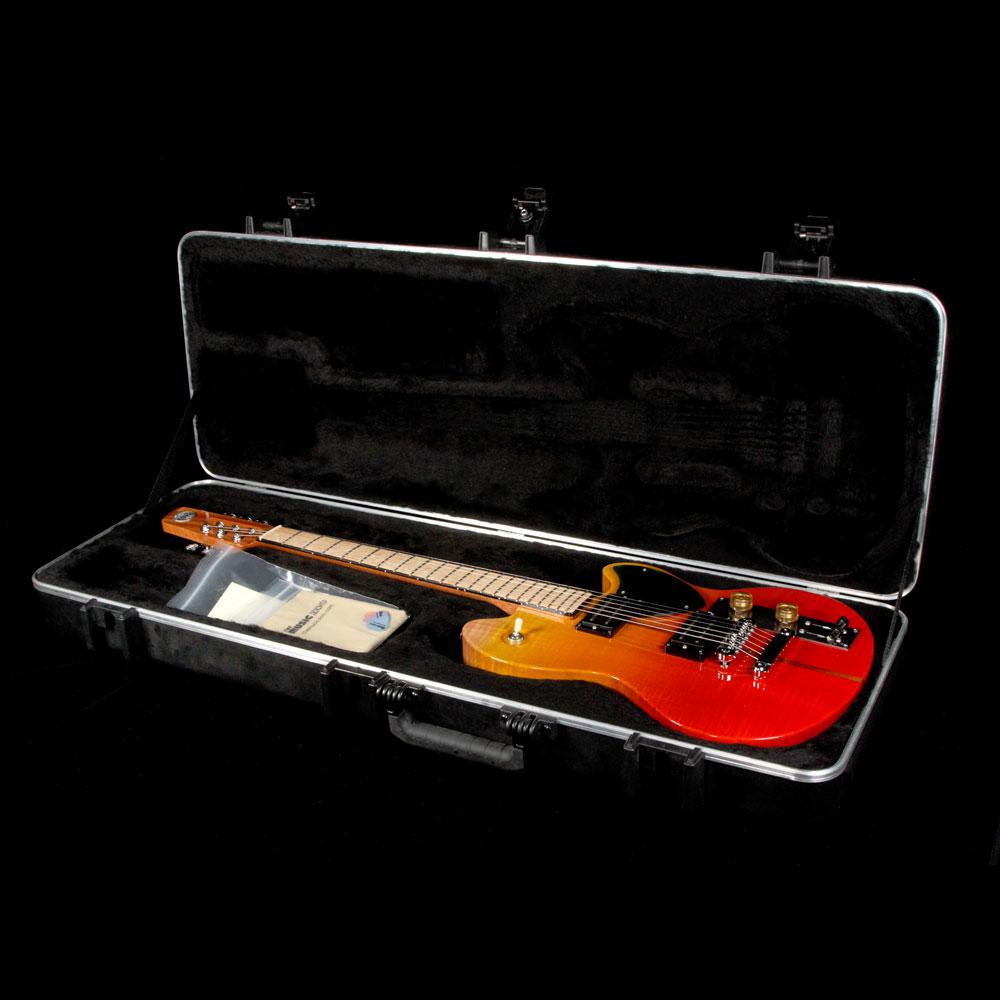

Includes: Hardshell Case and Paperwork

The Specifications

As it left The Music Zoo Tech Bench.
  • 8 lbs 13 oz
  • Tri-Burst Finish
  • Flame Maple Body with Walnut Stringer
  • Sapele Neck
  • Birdseye Maple Fretboard
  • 25" Scale Length
  • 1-11/16" Nut Width
  • 10" Radius
  • .850" at 1st Fret
  • .940" at 12th Fret

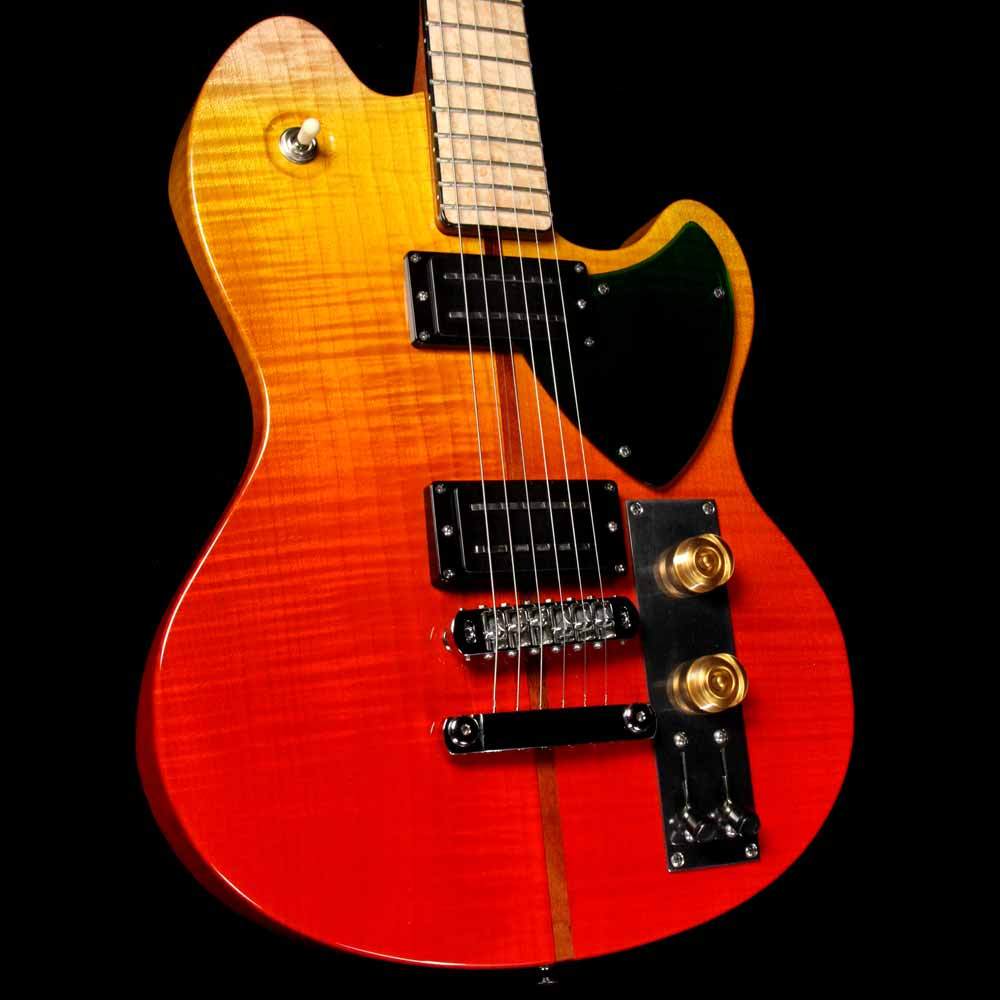

  • Pete Biltoft Pickups with Coil Selector and Varitone Switching

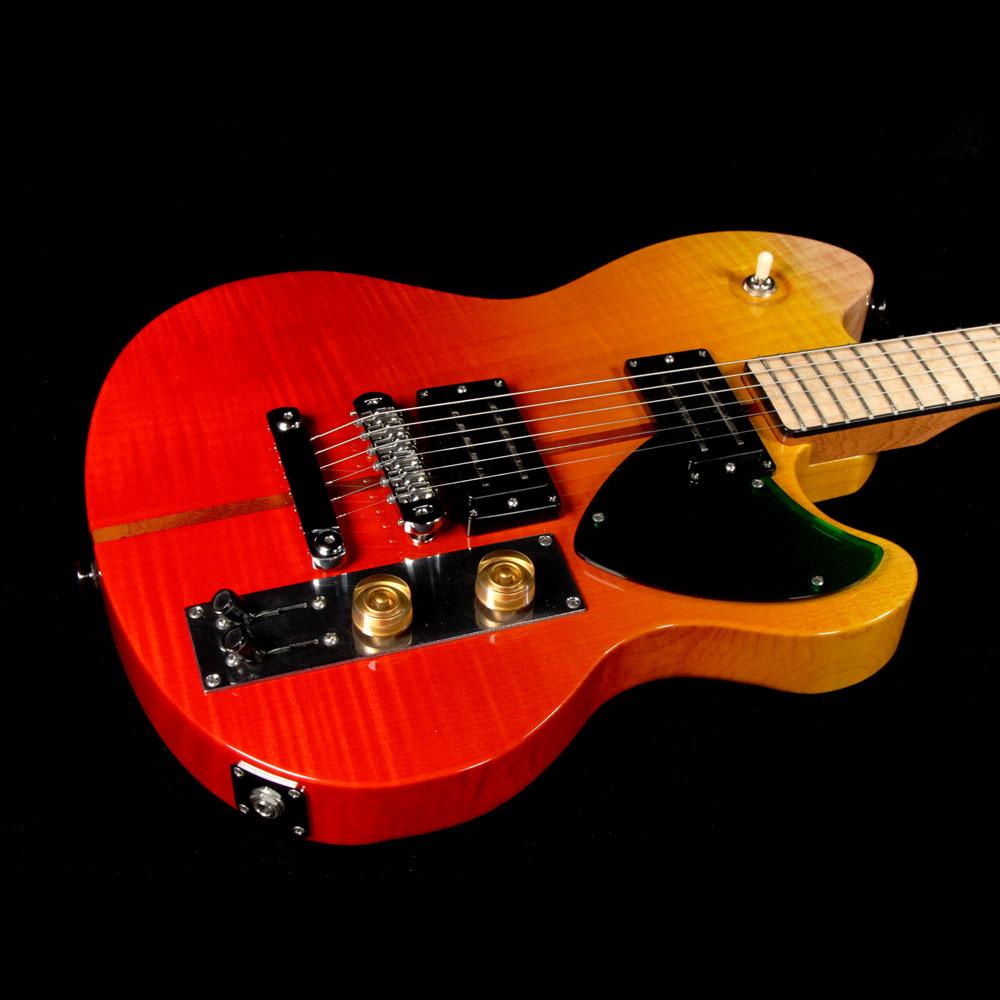

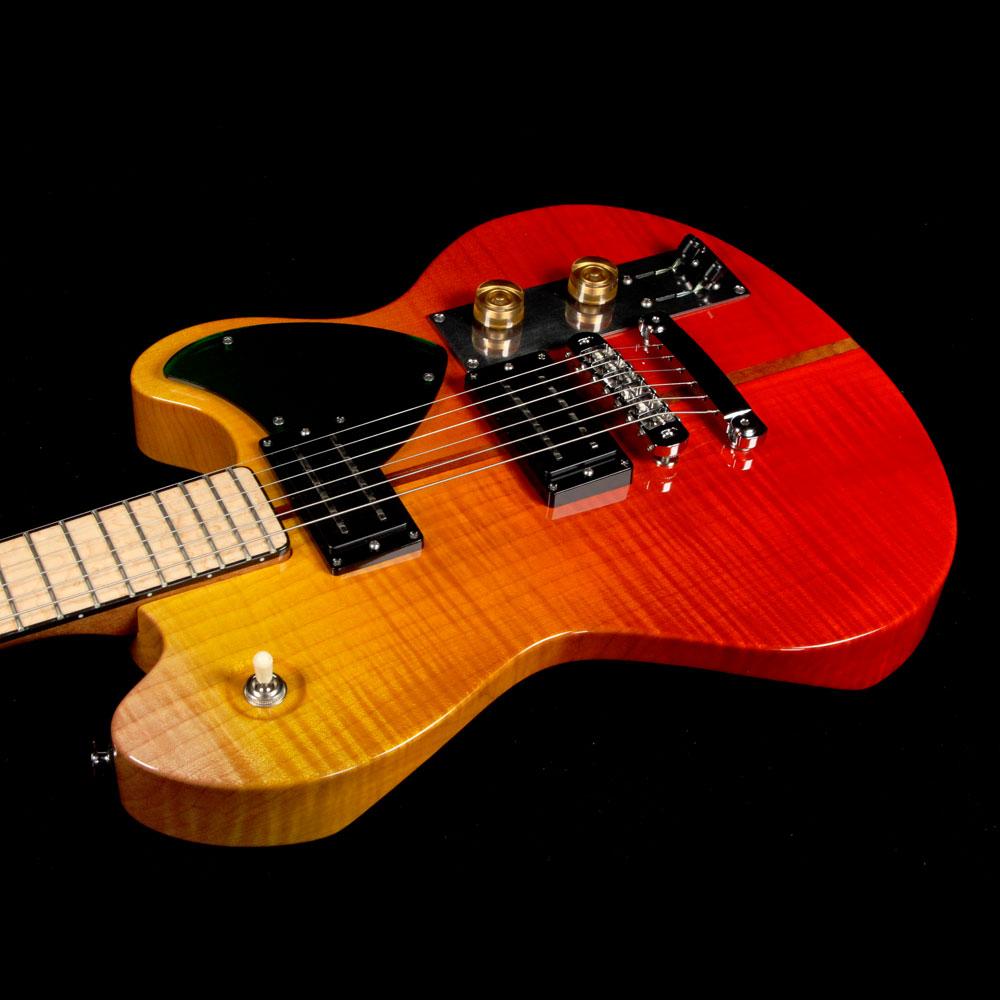

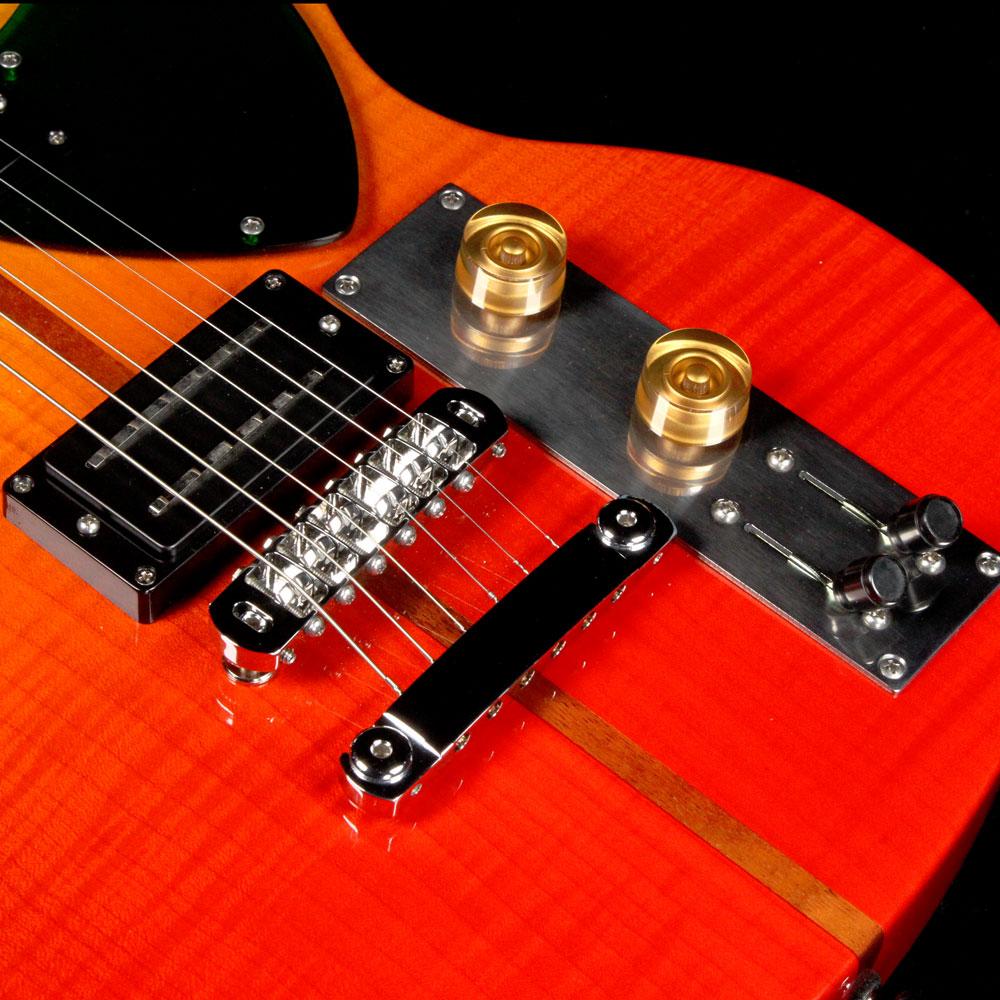

  • Top Switch: Position 1 - Dual Humbuckers, Position 2 – Dual Single Coils, Position 3 – Bridge Humbucker & Neck Single Coil, Position 4 – Bridge Single Coil & Neck Humbucker
  • Lower Switch: Position 1 – Standard Master Tone Control, Position 2 & 3 – High and Low Pass Filters, Position 4 – Mutes Neck Pickup for Killswitch Effect
  • Graphtech Nut

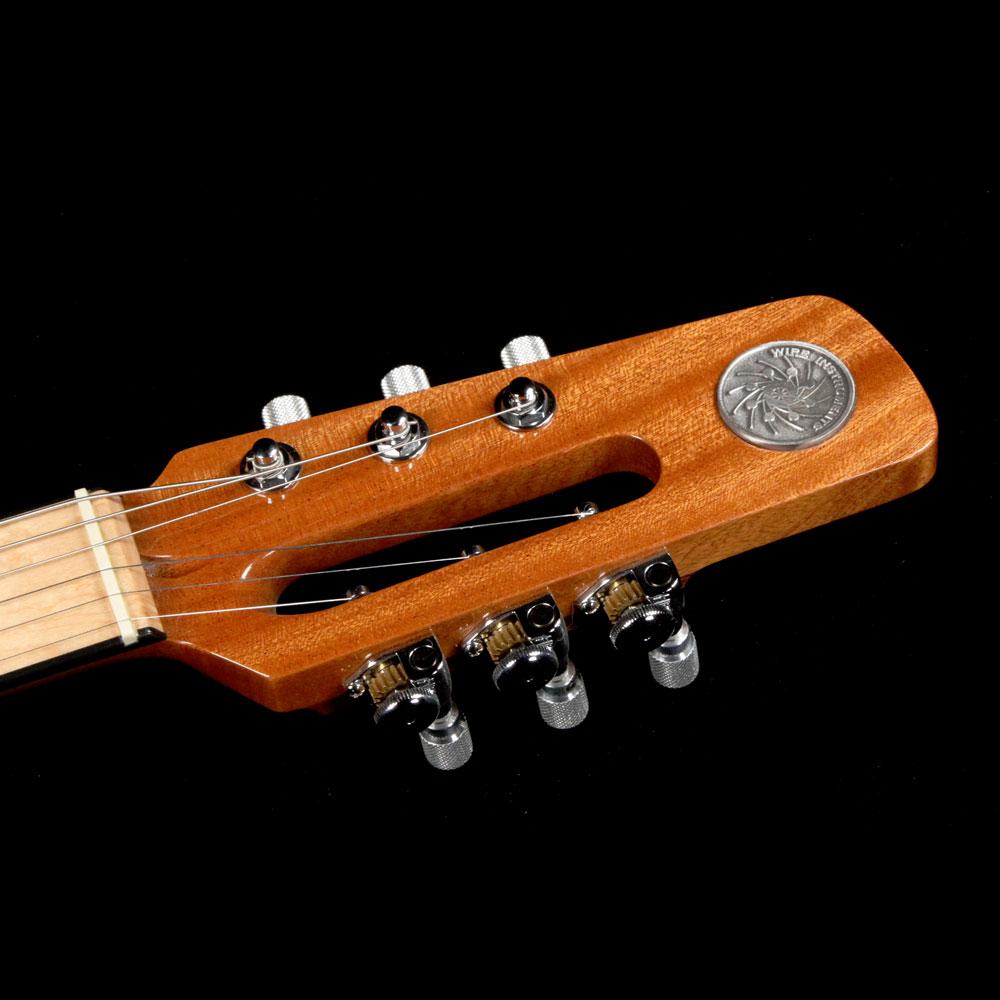

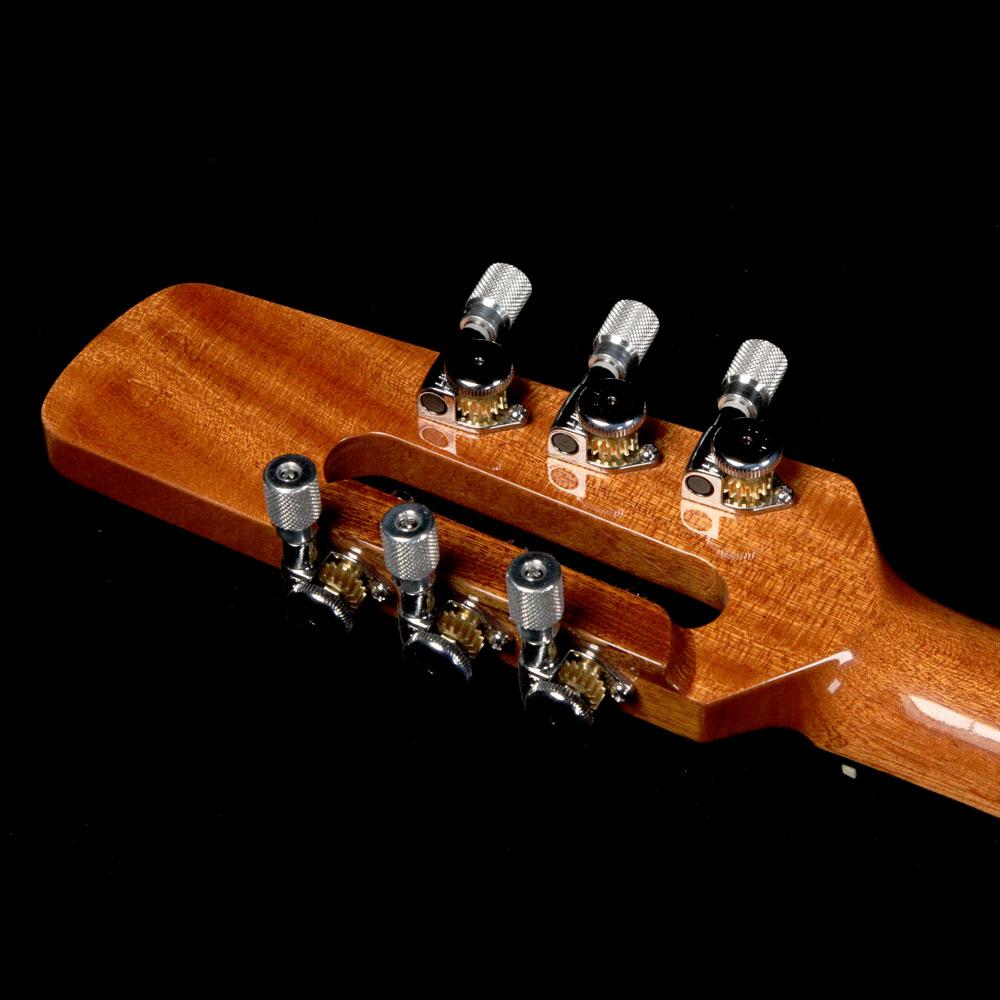

  • Hipshot Tuners
  • Tune-o-Matic Bridge
  • Chrome Hardware
